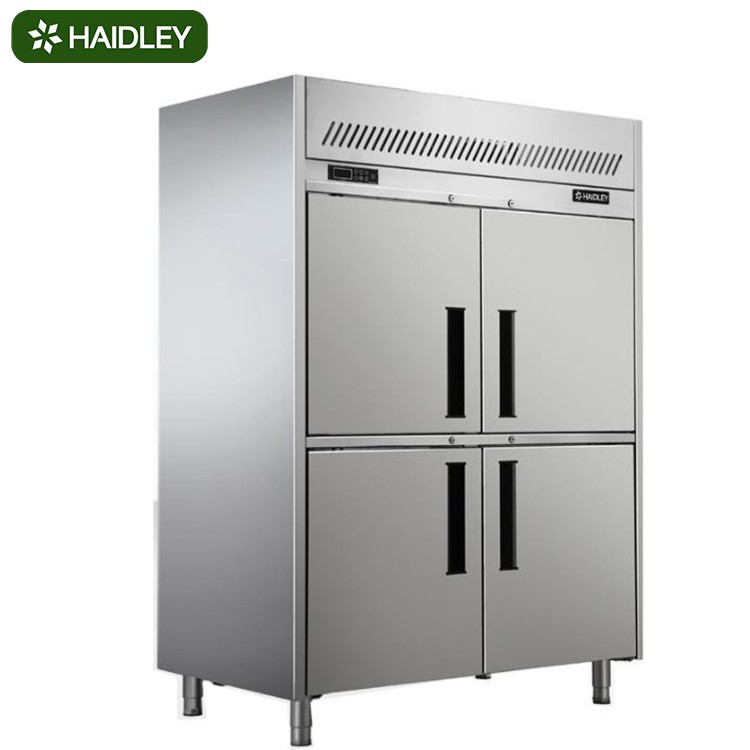

Hydeli 4-door single temperature air-cooled vertical cabinet
2019-12-05 293
model | HGN2D4 | MGN2D4 / FGN2D4 | LGN2D4 |
Overall dimensions (mm) | 1400 × 815 × 1980 | 1400 × 815 × 1980 | 1400 × 815 × 1980 |
Voltage frequency | 220V / 50Hz | 220V / 50Hz | 220V / 50Hz |
Cooling method | Air-cooled | Air-cooled | Air-cooled |
Temperature control type | Intelligent electronic temperature control | Intelligent electronic temperature control | Intelligent electronic temperature control |
temperature range | + 1 ℃ ～ + 4 ℃ | -2 ℃ ～ + 2 ℃ | -22 ℃ ～ -18 ℃ |
Volume (L) | 1180 | 1180 | 1180 |
Refrigerant | R134a | R134a | R404A |
Door type | 4 doors | 4 doors | 4 doors |
Cabinet foot type | Bullet foot | Bullet foot | Bullet foot |
foaming material | Cyclopentane | Cyclopentane | Cyclopentane |
Outer box material | SUS304 stainless steel | SUS304 stainless steel | SUS304 stainless steel |
Inner box material | SUS304 stainless steel | SUS304 stainless steel | SUS304 stainless steel |
product description:
1.SUS304 stainless steel inside and outside
2.Suitable for standard GN1 / 1 or 2/1 servings
3.Unique rounded corner design of bottom plate and enclosure of inner box, easy to clean
4. Independent research and development of intelligent temperature controller, hand contact is weak and waterproof, safer
5.Automatic return door design, effectively prevents the loss of cold quantity and facilitates access to items
6. Block cold bridge design, reduce energy consumption
7. Adopt high-quality imported compressor, fluorine-free environmentally friendly refrigerant, energy saving and fast cooling
8. Environmental protection 70mm thick cyclopentane insulation layer
9.38 ℃ ambient temperature design
10. Meet HACCP national standard
