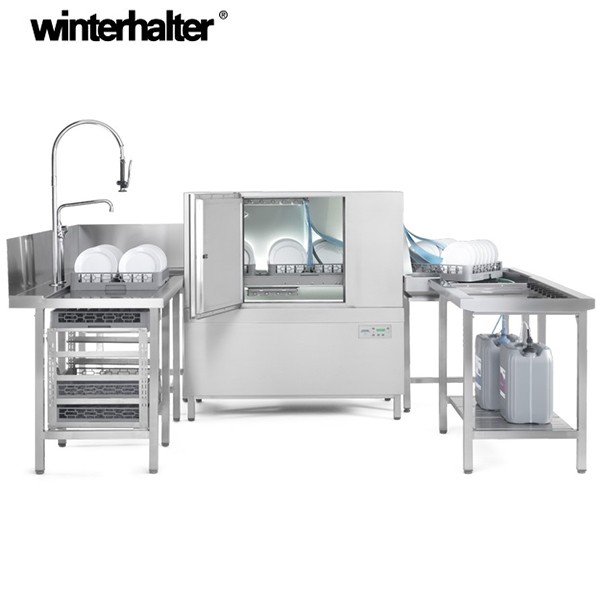

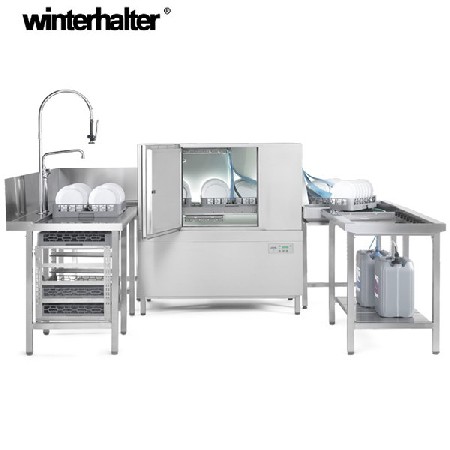

Winterhalter C50 basket channel dishwasher
2019-12-05 343
Cleaning pump
Maximum inlet water temperatureGeneral data | company | C50单次过滤 | C50两次过滤 |
Water tank capacity (over wash water tank)) | L | 95 | 95(12.5) |
Basket size | MM | 500*500 | 500*500 |
Entrance height | MM | 450 | 450 |
Channel width | MM | 510 | 510 |
Working height (optional) | MM | 900（950） | 900（950） |
KW | 1.6 | 1.6 | |
Decibel of noise | dB(A) | 70 | 70 |
Waterproof grade | IPX5 | IPX5 | |
Net weight / gross weight | |||
Basic model | Kg | 200/250 | 230/280 |
Zone with pre wash area | Kg | 225/307 | 255/337 |
Drying zone | Kg | 266/348 | 296/378 |
With pre washing and drying area | Kg | 291/405 | 321/435 |
Maximum inlet water temperature | ℃ | 60 | 60 |
Need dynamic water pressure, with atmospheric pressure boiler | Bar/kpa | 1.5-6.0/150-600 | 1.5-6.0/150-600 |
Product selling point
1. Washing performance
Fast and efficient: wash up to 260 baskets per hour. High performance, compact structure, less occupied space,
3 speeds that can be customized according to customer requirements: strengthen standard fast procedures. Each speed level can be customized according to customer requirements. The bowl basket in each washing area triggers the automatic operation function to improve the operation cost and benefit
2. High flexibility
Based on single run and double run basic machines, modular pre washing area and drying area can be combined.
3. Health and safety
Equipped with 18 kW standard water tank heater, it can be upgraded to 27 kW High power, and fully considered sanitary design. Regardless of the water pressure provided at the site, the boiler heater always operates at a steady 27 kW: this ensures a constant perfect over wash result
4. Simple operation
Easy to install, operate and clean. The display uses icons without text, which is easy to understand. The automatic cleaning procedure ensures that the dishwasher is emptied and filled quickly. In this way, C50 can be put into use immediately.
