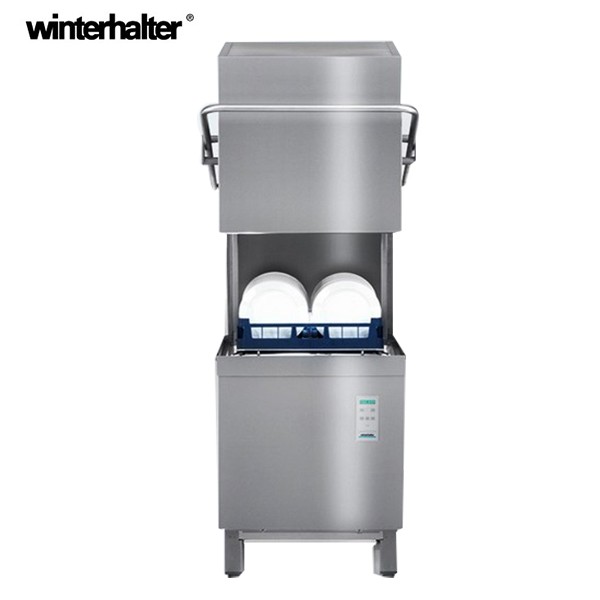

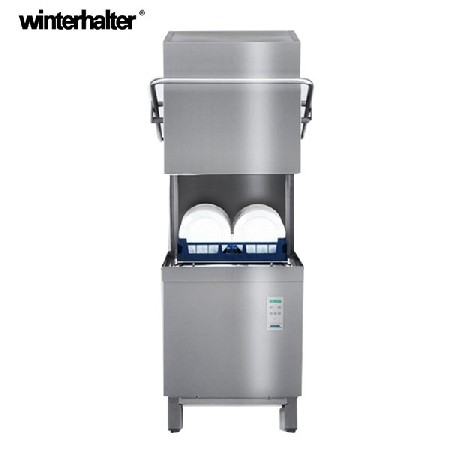

Winterhalter P50 Uncovered Dishwasher
2019-12-03 335
Product parameters
Packing dimensionsNet weight / total weight
Theoretical wash quantity | Baskets / hour | 60/20 |
Basket size | MM | 500*500 |
Water consumption | ||
Tank capacity | L | 28 |
Rinse water volume of each washing process | L | 2.4/3.8 |
temperature | ||
Water tank temperature | ℃ | 62/66 |
Rinsing temperature | ℃ | 85 |
Maximum inlet water temperature | ℃ | 60 |
Other information | ||
Main washing pump | KW | 0.6 |
Decibel of noise | dB(A) | Top 63 |
Baskets / hour | 770*880*1605 | |
Waterproof grade | IPX3 | |
kg | 98/123 | |
Electrical specifications
Power Supply | Fuse | water tank | boiler | Total connected load |
380V-415V.3N.50HZ/60HZ | 16A | 2.5KW | 9.0KW | 9.3KW |
20A | 2.5KW | 9.0KW | 11.8KW | |
220V-240V.3N.60HZ | 25A | .5KW | 9.0KW | 9.3KW |
32A | 2.5KW | 9.0KW | 11.8KW |
Product selling point
1. Simple operating system
Color display computer control system
Double washing procedure
Temperature display of built-in water cylinder boiler
Automatic error reporting system
Moistening temperature control
Auto start settings
Self cleaning function
2. Efficient washing effect and hygienic design
Rotary wash wall design ensures full coverage
Triple filtration system reduces the number of water changes
Easy removal and cleaning of washing arm and moistening arm
Deep drawing forming integrated water tank can achieve the most ideal sanitary effect
Hygienic basket design
3. Economic operation cost
Short program
Reduce heating time
Lower total connected load 3 phases 20 Amps
Additional 1.7kw heating with optional waste water recovery unit
