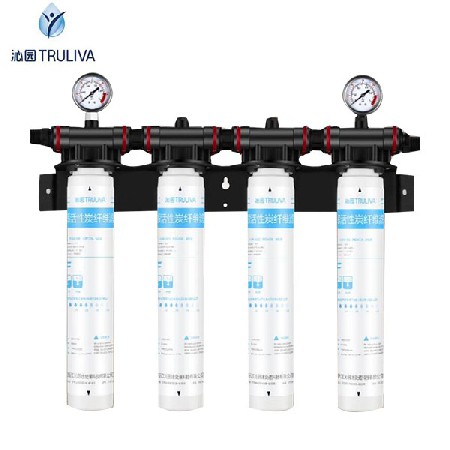

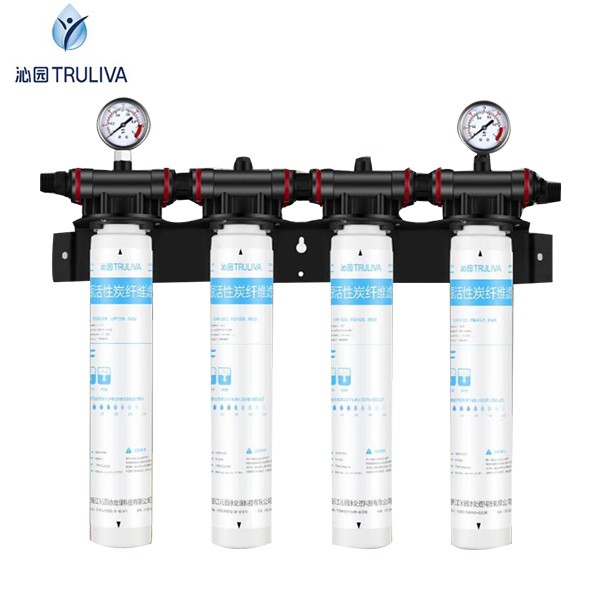

Gion wall-mounted pipe net water pipe
2019-11-30 273
name | QS-C1-BK300 | QS-C1-BK700 | QS-C1-BK1000 | QS-C1-BK1500 |
Applicable water source | Municipal tap water | Municipal tap water | Municipal tap water | Municipal tap water |
Inlet water pressure | 0.1-0.4Mpa | 0.1-0.4Mpa | 0.1-0.4Mpa | 0.1-0.4Mpa |
Outflow (MOH) | 4L / min | 6L / min | 8L / min | 10L / min |
Laboratory test data | 15.2L / min | 15.2L / min | 57L / min | 70L / min |
Filter element | 1 silver loaded activated carbon fiber filter | 2 silver loaded activated carbon fiber filters | 3 silver loaded activated carbon fiber filters | 4 silver loaded activated carbon fiber filters |
Features | Fine filtration improves taste | Fine filtration improves taste | Fine filtration improves taste | Fine filtration improves taste |
Product size (MM) | 206X137X570 | 360X171X570 | 514X171X570 | 668X171X570 |
Packing size (MM) | 260X220X630 | 410X220X630 | 565X220X630 | 720X220X630 |
Net weight (Kg) | 2.0 | 4.0 | 6.0 | 8.0 |
Product selling points
1. Designed for water demand in the catering industry
2. The filter element is connected in parallel, and the water flow rate can be changed
3. Compact connection between bases, can be DIY disassembled and connected in parallel
4. Unified filter element management and unified replacement
5.Modular filter element to improve taste
6. Filter life, calculated according to the pressure difference between inlet and outlet water
7. Has a high adsorption capacity
8. Modular filter element, self-service core replacement is more convenient
9. Fine filter fiber activated carbon core does not need to discharge waste water, the whole machine has no electrical components
10. According to the power consumption of the store, you can choose to meet the water demand of each portal.
