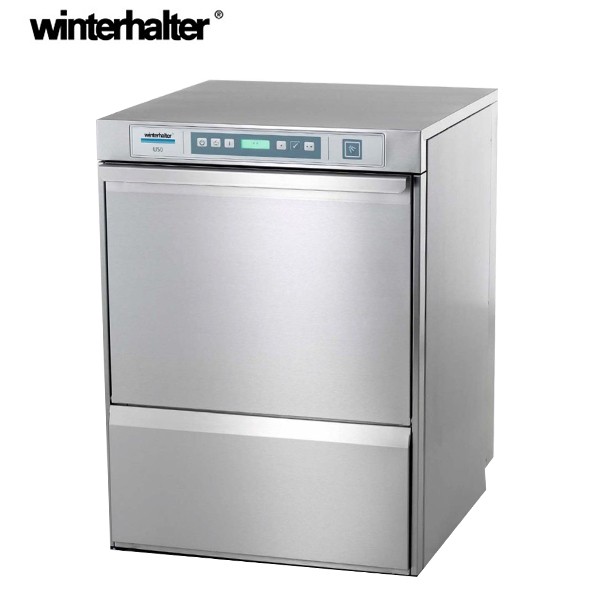

Winterhalter U50 standard economy under-counter dishwasher

2019-12-03 282

  Number of programs: 3

  Theoretical washing quantity (baskets / hour): 30 / 20

  Basket size: 500 * 500mm

  Water tank capacity: 15.3l

  Water tank temperature: 62 / 66 ℃

  Washing temperature: 85 ℃

  Maximum inlet water temperature: 60 ℃

  Main washing pump: 0.5KW

  Noise decibel: 59db (a) maximum

  Package size: W 720 * D 712 * h 1020

  Waterproof grade: IP * 3

  Net weight / total weight (kg): 66 / 76



Electrical specifications

Power Supply

Fuse


water tank

boiler

Total connected load

380V-415V.3N.50HZ/60HZ

16A

2.0KW

5.3KW

7.8KW

220V-240V.1N.50HZ/60HZ

16A

2.0KW

2.6KW

3.1KW

20A

2.0KW

2.0KW

4.1KW

220V-240V.3N.50HZ/60HZ

25A

2.0KW

5.3KW

7.8KW




  Product selling point

  1. Easy to use

  One button operation start button, self-cleaning program. Temperature display. The operation of U50 is simple and intuitive.

  2. Economic and efficient

  Double structure body and door, heat preservation, noise reduction. Efficient filtration system. Ensure clean water tank, lower operation cost.

  3. Cleaning and sanitation

  U50 ensures first-class washing effect. Ensure the highest standards of cleanliness and hygiene.

  4. Service friendly

  Fast maintenance and Troubleshooting: built in fault management system and easy maintenance.
