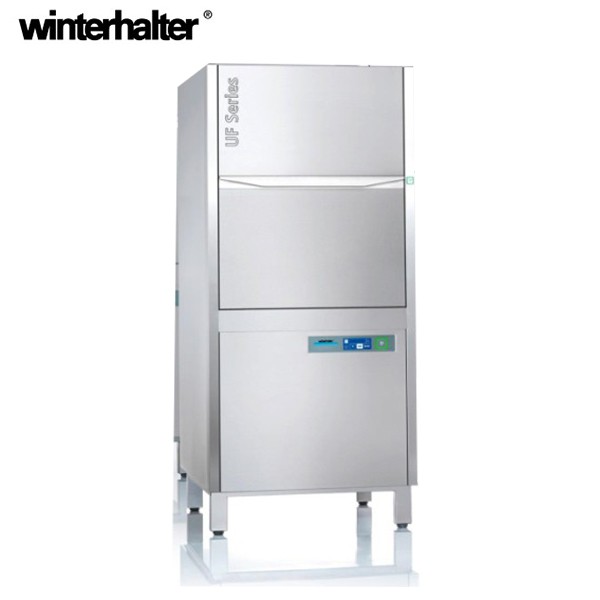

Winterhalter UF Basket Passage Dishwasher
2019-12-03 287
Required dynamic water pressure
General data | Company | UF-M | UF-L | UF-XL |
tank capacity | L | 69 | 69 | 138 |
Frame internal dimensions | mm | 612*672 | 612*672 | 1305*672 |
Clear entrance height | mm | 640 | 800 | 800 |
Cleaning pump | kw | 2.5 | 2.5 | 2*2.5 |
Decibel of noise | dB(A) | ＜70 | ||
Waterproof grade | IPX5 | |||
Net weight / gross weight | kg | 190/220 | 200/230 | 305/355 |
Maximum inlet water temperature | ℃ | 60 | ||
Bar/kpa | 1-6/100-600 | |||
Specific data | ||||
Theoretical washing quantity standard | Baskets / hour | 12/24/40 | ||
Theoretical wash quantity short procedure | Baskets / hour | 23/42/64 | ||
Rinse water consumption of each washing process | L | 4.7 | 4.7 | 7.0 |
Water tank temperature | ℃ | 63 | ||
Rinsing temperature | ℃ | 85 | ||
Product selling point
1. High quality and reliability
Wash utensils in extreme conditions. The UF series is specially designed for this purpose. High quality materials and durable surface treatment make the dishwasher structure firm, absolutely reliable and durable.
2. Perfect washing effect
Whether it's protein, starch or grease: UF can handle very serious and stubborn stains. High performance washing system. Up to 1 bar of water pressure and immersion procedure, this is the perfect design to achieve professional washing.
3. Operation conforms to ergonomics
Touch screen and quick start button. Can fan close the door, basket cart and can turn up the basket. These and many other details make the UF easy to operate, especially ergonomic.
4. Health and safety
Any food related work site must comply with health standards. UF ensures this is achieved, and the interior of the carefully designed dishwasher is particularly easy to clean.
5. Flexible system
Crawler or basket channel dishwasher. Adopt modular structure, provide various combinations, different placement methods.
6. Customized solutions
Each large kitchen is different: the space situation of the site, washing items and washing time, washing process and specific requirements.
7. Cost effective
Midea filtration system can reuse the washing water, reduce the number of water changes and save water and energy.
The triple moistening system can save about 3KW / h energy and reduce the wear of dishes.
The heat recovery energy-saving system can save up to 12KW / h.
8. Highest level of cleanliness and hygiene
Unique self cleaning system
Integrated deep drawing water tank
180 degree open door
No pipes and screws inside the machine
Vent line for grease filtration
